Machine Shop Equipment and Facilities

Lasers

3 Axis Laser

  • Mitsubishi 4020RX, 6000W fiber laser, 80” x 160” table with pallet changer

  • Mitsubishi 3015eX, 6000W fiber laser, 60” x 120” table with pallet changer

5 Axis Laser

  • Mitsubishi 3112VZ10, 3000W CO2 Laser, 60” X 120” X 37” travel
  • Mitsubishi 2015VZ1, 3000W Co2 Laser  80″ X 60″ X 24″ travel

Waterjet

  • Flow Mach3b 5-Axis Dynamic XD, 90kpsi 50-HP pump, 80” X 160” table

CNC Machine Shop

Milling

5 Axis VMC

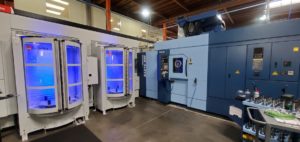

  • Matsuura MAM72-63V, 22kW 12kRPM, 320 tools + 12-pallet FMS Ø24.80” x 17.7” work envelope

  • Haas UMC-750SS, 30HP 15kRPM, 40 tools, Ø30” x 20” work envelope

4 Axis VMC

  • Haas EC-400PP, 30HP 15kRPM, 100 tools, 6-pallet pool Ø21” x 25” work envelope

3 Axis VMC

  • Haas VF 11/50, 60HP, 10K RPM, 120″ X 40″ X 30″ travels
  • Haas VF-7/40, 30HP, 10k RPM, 84” X 32” X 30” travels
  • Haas VF-2SSYT, 30HP, 12k RPM, 30” X 20” X 20” travels
  • Haas VF-5SS, 30HP, 12k RPM, 50” X 26” X 25” travels
  • 2X 8” Rotary Tables for 4-Axis Operations
  • 4 Station Gang Drill
  • 6′ Radial Drill Press
  • 19″ Regal Le Bland Lathe 2 Bridgeports Mills
  • 5″ Universal Turret Takisawa Lathe
  • Surface Grinders

Turning

  • Doosan Lynx 220, 15HP, 6k RPM, 6” chuck.
  • Haas ST-10Y, 15HP, 6k RPM, 6” chuck with Y-axis & live tooling



CNC Punching

  • Amada AE 2510 NT, CNC 58 Turret Punch 22 Ton, Brush Table, 4×8 sheet up to 0.5″ thick.

Shearing / Sawing

  • Amada Gap Shear 1/4″ x 10′
  • Amada Corner Notcher
  • Heberle Precision Cold Saw
  • HYD – MECH Precision Power Band Saw
  • Kalamazoo Band Saw
  • 2- Hem Horizontal Saw Automatic Feed

machine laser cutting shop bay area

Press Brakes

  • Mitsubishi BB Series all-electric, 60 Ton, 6’ bed
  • Amada HDS 2204NT, 243 Ton, 14’ bed length, 5-axis backgauge
  • Amada HDS 1303NT, 143 Ton, 10’ bed length, 5-axis backgauge
  • Amada RG50NC
  • Amada HD 3504NT 385 Ton, 14′ bed, 5-axis backgauge

Welding Equipment

  • Robotic welder, Yaskawa/Fronius welder, Yaskawa position table 1200 lbs
  • Complete Welding Department with Certified Welders for all Applications
  • 1 Lincoln Squarewave TIG 255
  • 1 Miller 300 amp Heliarc TIG
  • 3 Miller 250 amp TIG
  • 1 Miller 300 MIG
  • 1 ESAB MIGmaster 250
  • 1 Linde VI-253 MIG
  • 2 Nelson Stud Welding #2500
  • 1 Pak 10 Plasma Cutting System
  • 1 Standard 100 KVA Spot Welder
  • Cabinet Spot Welder for Large Enclosures

tig mig welding sandblast Bay Area

Finishing Machinery

  • Automated Deburring Machine: Costa
  • Timesaver 36″ Wet Grinder
  • Roger Stroke Sander
  • 2 Tumbling Deburr Machines
  • Complete Refinish Facilities for Cosmetic Panels
  • Stainless Steel Mirror #8 Finish & Super #10 Finish
  • Aluminum
  • Cold Rolled Steel
  • Painting and Silk-screening
  • Ultra Sonic Cleaning + Passivation



Inspection Facilities

  • Each Process Inspected
    • Quality Assurance Manual is ISO 9001 compliant
    • Tight Tolerance Production
    • High-Precision Standards
    • Faro ‘Quantum’ computerized touch probe inspection system
    • Mitutoyo Crysta-Apex CMM

Sandblasting

  • Glass Beading Booth – 12’x14’x15′

Power Rollers

  • 2 Whitmore 1/4″ x 4′
  • 1 Buffalo 1/4″ x 6′

P.E.M. Setting Machine

  • Whitney Pro/Fab
  • Haeger

State of the Art Fully Enclosed Room

  • Deburr Area
  • Final Mechanical Assembly
